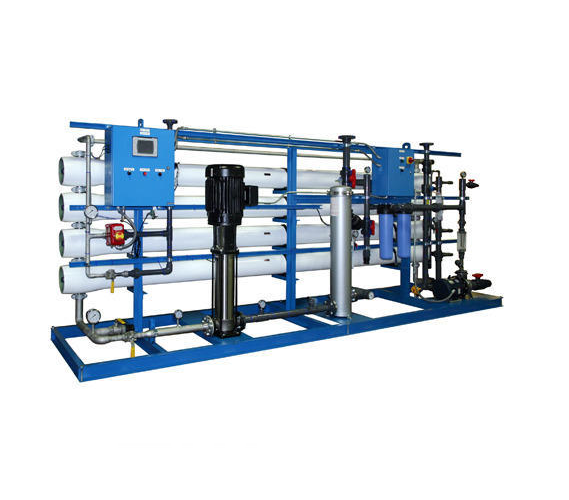

FORBES RO 50000GPD System

Premium Series - Model No. AG-040

Product Details

• Stainless Steel Frame (Control Box - Optional)
• Stainless Steel or Fiber Glass Membrane Vessel x 6
• 4" x 40" Membrane x 6
• Inlet Actuator & Flush Solenoid Valve
• Source & RO Gauge
• Inlet & Concentration Flow Meter
• Stainless Steel Vertical Pump 2.5kW (Single Phase Motor)
• Auto Flush Controller & TDS Detector
• Accumulated Timer
• Pressure Regulator
• Gate Valve, Anti-Scalent Device x 2
• Electricity Consumption: 2220W
• Shipping Dimension & Weight: 80x50x145cm, 88kg

Specifications

• Production Capacity: 50,000 Gallons Per Day
• Salt Rejection: 96-98%
• Recovery Rate: 50-60%

Features

• Computer Control Panel
• Low-Pressure Monitoring Alarm
• Dual TDS Monitoring
• Feed Flush
• Tank Level Input
• Vertical Multi-Stage Stainless Steel Booster Pump
• Feed Solenoid Valve with Electronic Bypass
• Feed Low-Pressure Switch
• Pump High-Pressure Switch
• Pre-Filter 0-100 psi Panel Mounted Glycerin Filled Gauges
• Pump Discharge and Concentrate 0-600 psi Panel Mounted Glycerin Filled Gauges
• 5 Micron Sediment Filter
• O-Ring & Heavy-Duty Filter Housing
• Low Energy Membrane Elements
• Stainless Steel Membrane Housings - 450 psi
• Clean-in-Place (CIP) Ports
• High-Pressure Stainless Steel Tubing and Fittings
